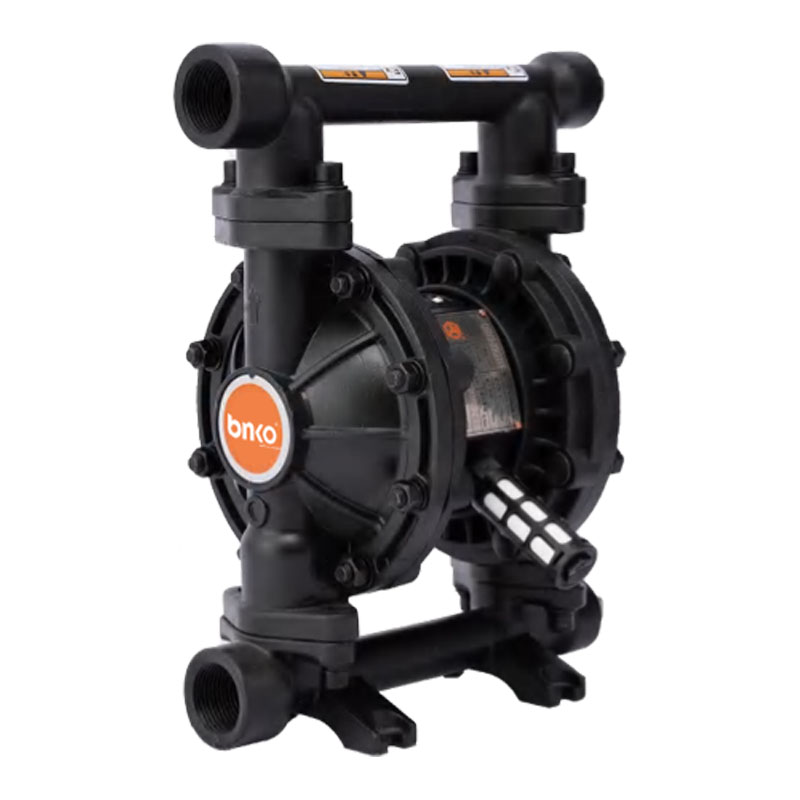

BKY Series Penumatic Diaphragm Pump
The BKY series diaphragm pumps combine the strengths of conveying machinery like self-priming pumps, submersible pumps, canned motor pumps, slurry pumps, and trash pumps. They feature:
BKY系列隔膜泵结合了自吸泵、潜水泵、屏蔽泵、泥浆泵和杂质泵等输送机械特点:
Long service life 寿命长
Low noise operation 噪音低
Minimal vibration 震动小
Stall-proof performance 不死机
Easy maintenance 易维修
Dry-run capability 允许空转
Self-priming start-up 自吸启动
Explosion-proof safety 安全防爆
Seal-less design 无密封设计
Low shear to materials 低物料剪切
Multiple material and size options 多材质多口径选择

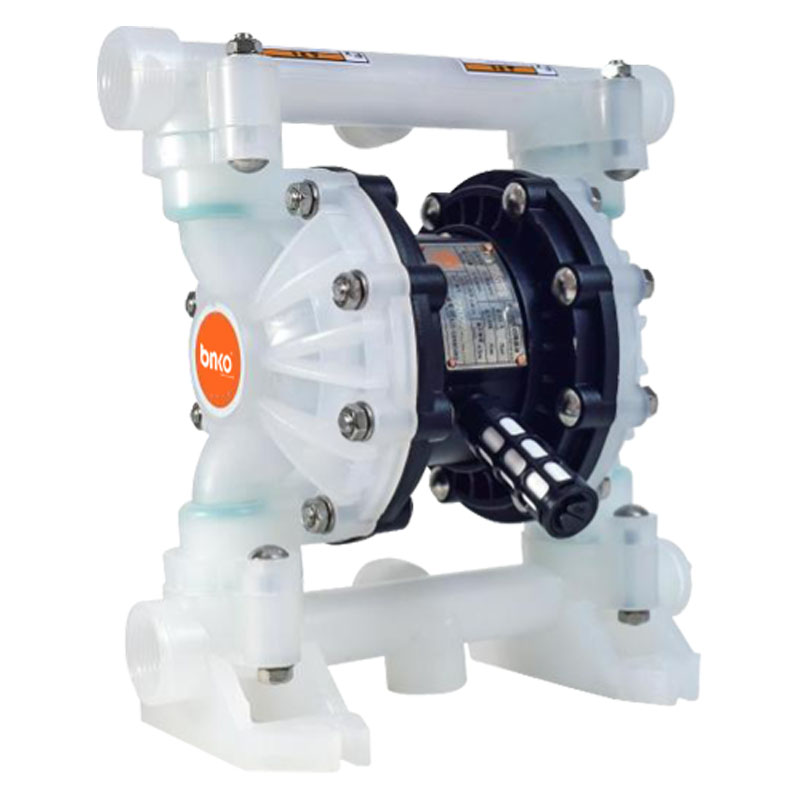

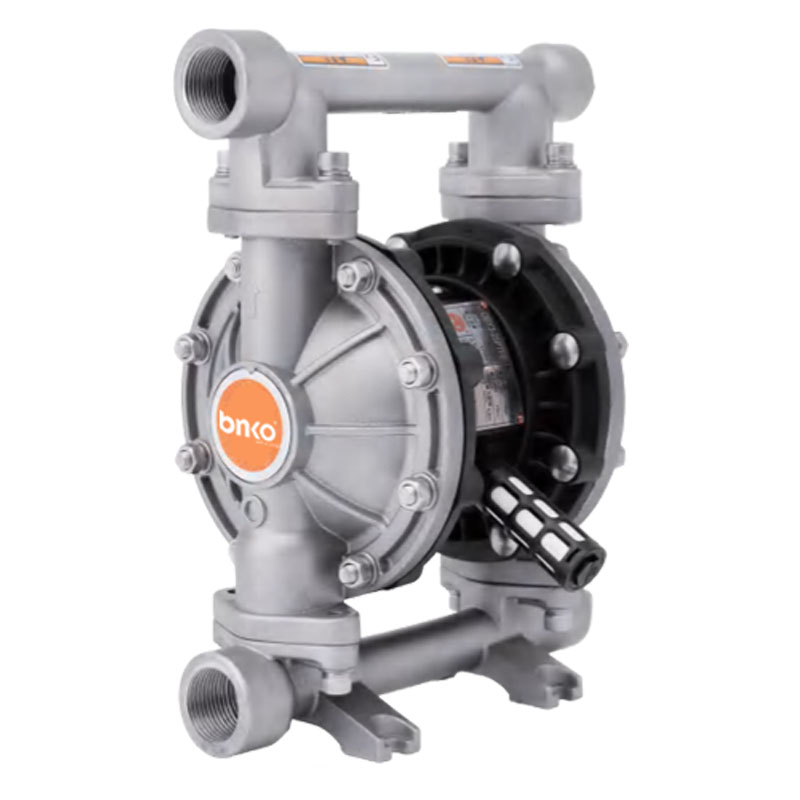

Body Material : Aluminum alloy / Stainless steel / Nodular cast iron / PP
泵体材质 : 铝合金 / 不锈钢 / 铸铁 / 聚丙烯
Model NO. | BKY10/15 | BKY20/25 | BKY32/40 | BKY50/65 | BKY80/100 | |||
Max.Working Pressure | 100psi (0.7Mpa,7bar) | 100psi (0.7Mpa,7bar) | 120psi (0.84Mpa,8.4bar) | 120psi (0.84Mpa,8.4bar) | 120psi (0.84Mpa,8.4bar) | |||
Fluid Inlet / Outlet | 3/8 in. / 1/2 in. | 3/4 in. / 1 in. | 1¼ in. / 1½ in. | 2 in. / 2½ in. | 3 in. / 4 in. | |||
Air Inlet | ¼ Inch | ¼ Inch | ½ Inch | ½ Inch | ½ Inch | |||
Max.SuctionHeight (Dry suction or wet suction) 最大虹吸高度（干抽或湿抽） | 113 ft.(4m) | 15 ft (4.5m) | 18 ft （5.48m） | 18 ft （5.48m） | 18 ft （5.48m） | |||
Max. Permitted Grain | 0.06 In.(1.5m) | 3/32 In.(2.5m) | ⅛ In. （3.2m） | 3/16 In.（4.8m） | 1/4 In.（6.4m） | |||
Every Reciprocating Flow | 0.016 gal.(0.06L) | 0.04 gal.(0.15L) | 0.15 gal.(0.57L) | 0.5 gal.(1.9L) | 1.03 gal.(3.9L) | |||
Max.Reciprocating Speed | 372 cpm | 400 cpm | 276 cpm | 200 cpm | 145 cpm | |||
The inlet and outlet sizes of the pneumatic diaphragm pump shall be selected to match the diameter of the connected pipeline. The flow rate of the pump depends on the supplied air pressure. The actual flow rate can be estimated approximately by the following formula:Q≈Qn×（P÷0.6）×η 气动隔膜泵的进出口通径应与系统管路尺寸相匹配，避免因管径过小产生节流、阻力过大，导致实际流量下降、能耗增加。 泵的实际输出流量主要由进气压力决定，可采用以下经验公式近似计算：Q≈Qn×（P÷0.6）×η | ||||||||
